Steel Braithwaite Water Tank Repair and Reline – Kendal, Cumbria

Case Study

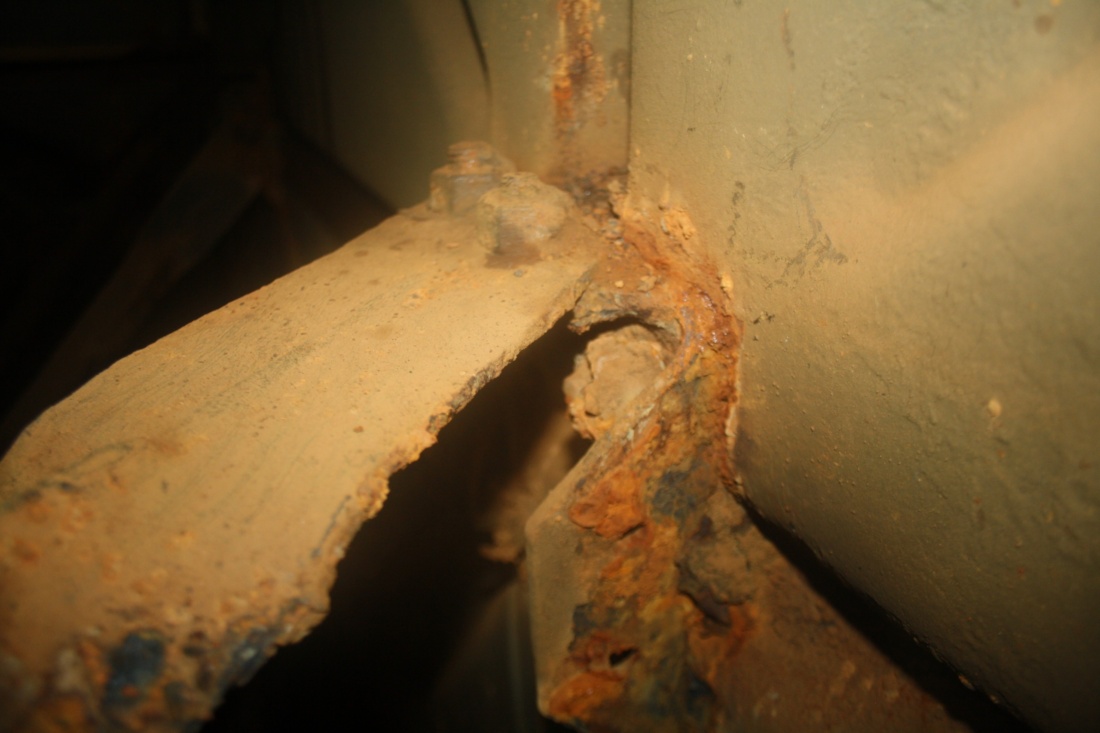

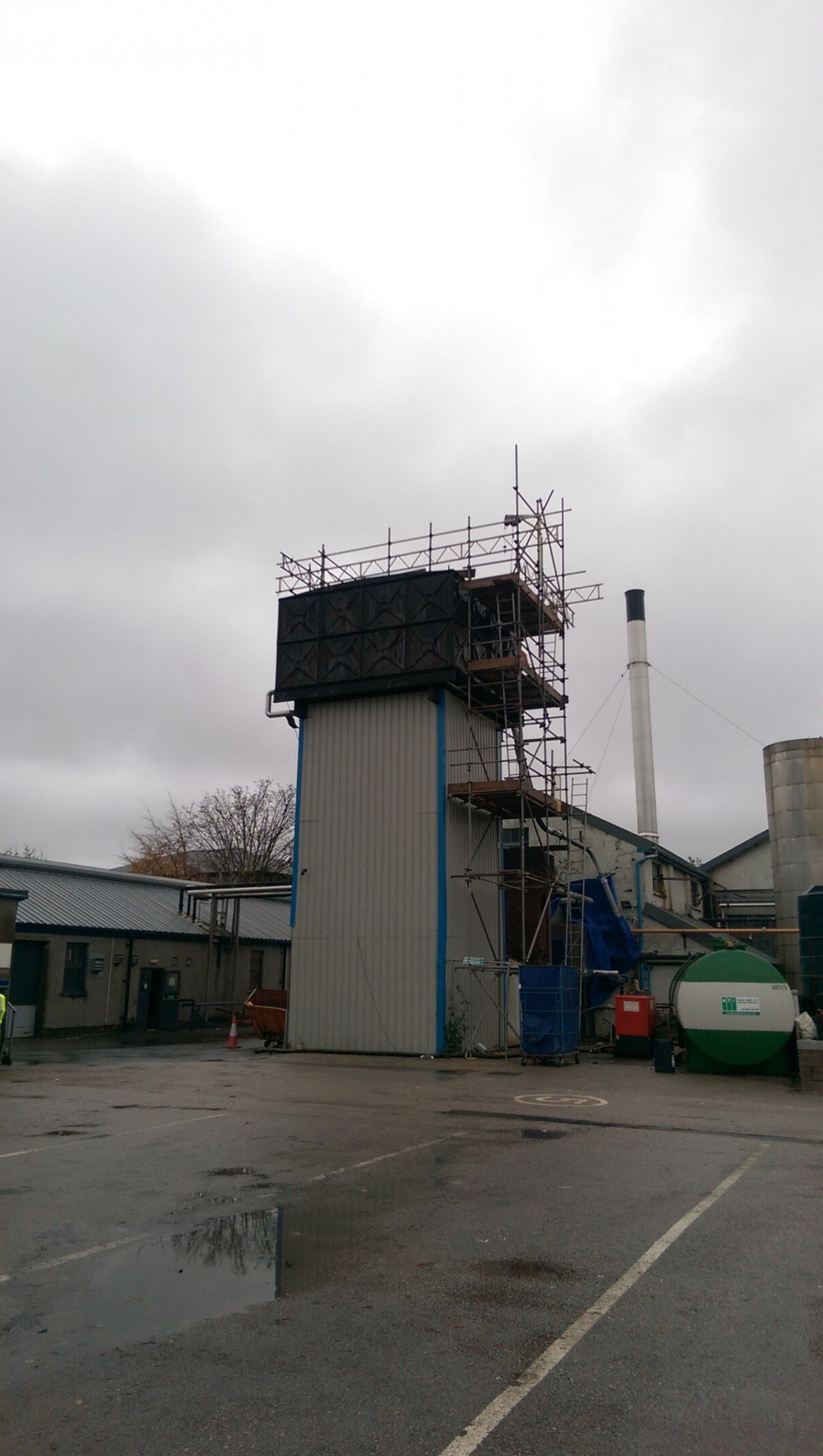

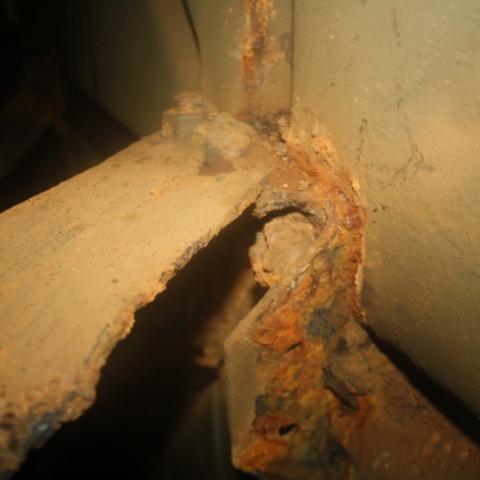

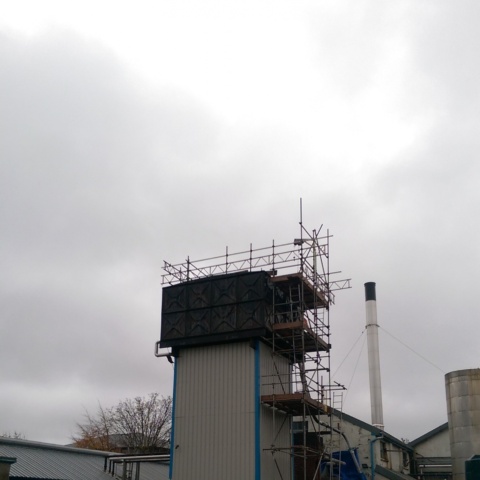

Our client had a 40-year-old steel Braithwaite water tank elevated on a tower. There was severe corrosion and it was leaking badly. On initial assessment the client was told that a replacement was the only option – this meant the project would have been very costly and disruptive. The client came to CWS to see if we could carry out a repair and reline to extend the life of the tank for another 10 years.

Our project manager surveyed the site and was able to determine that this was a viable option. We quoted and a summary of the project is explained below:

  • Carry out a full confined spaces entry into the tank.

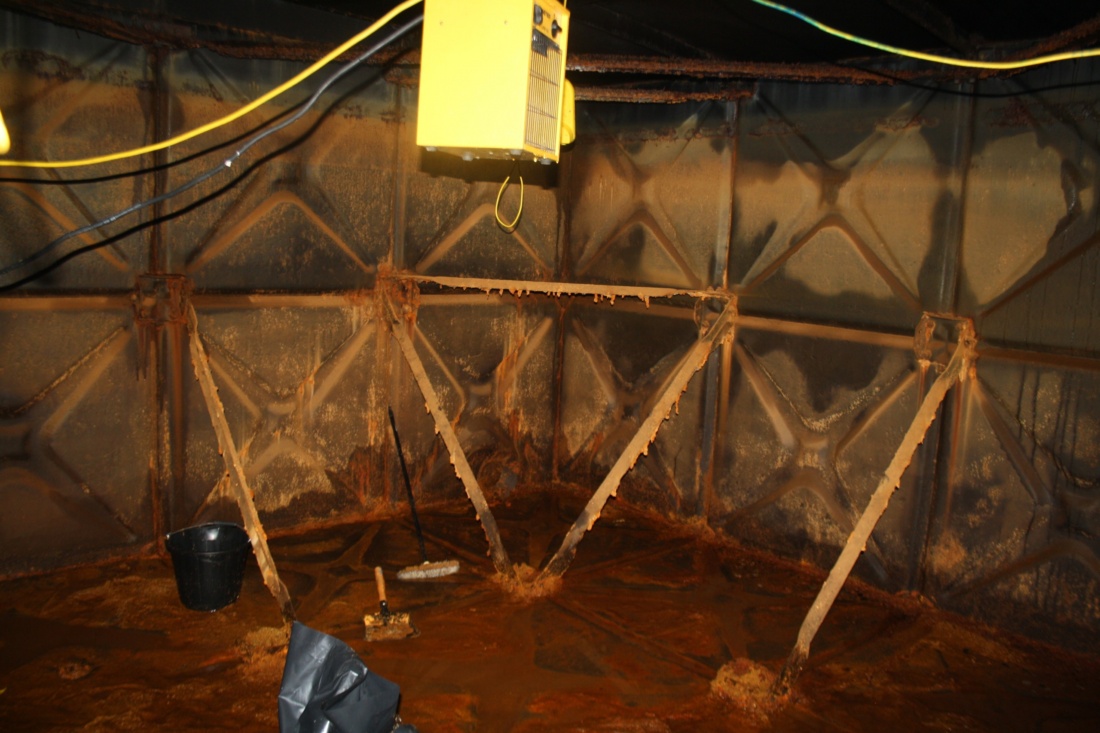

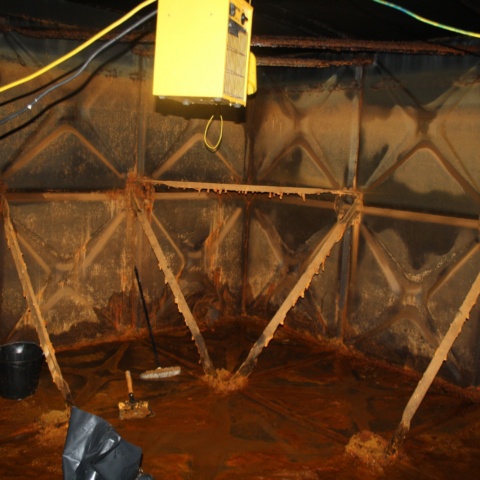

  • Remove all the scale corrosion from the sides of the tank and dispose from the tank.

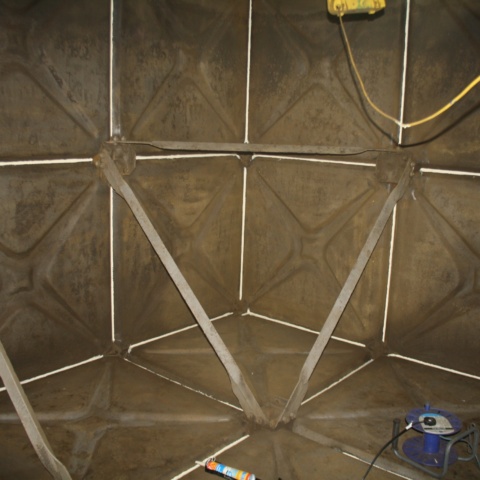

  • Shot blast abrasion to all the internal surfaces and then vacuum out debris.

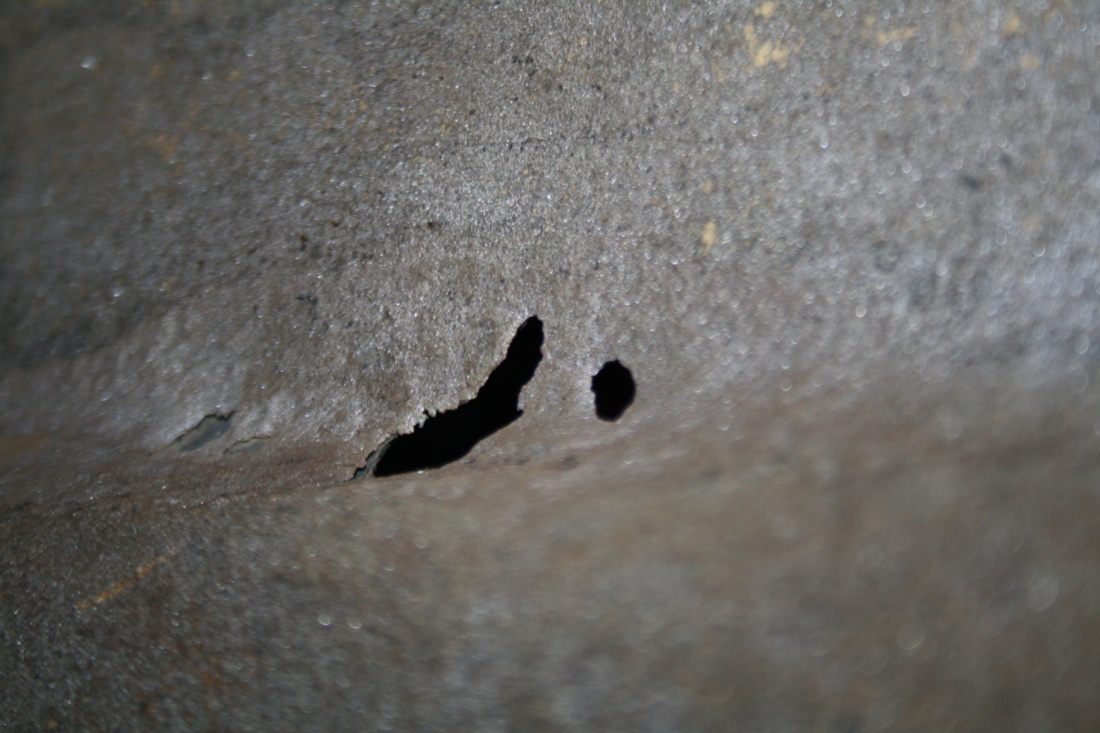

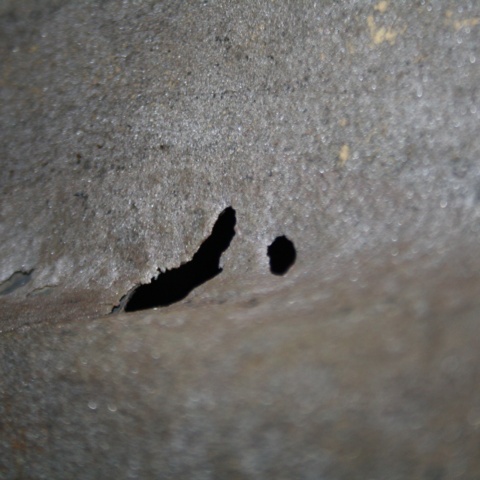

  • Weld repair all holes in the tank.

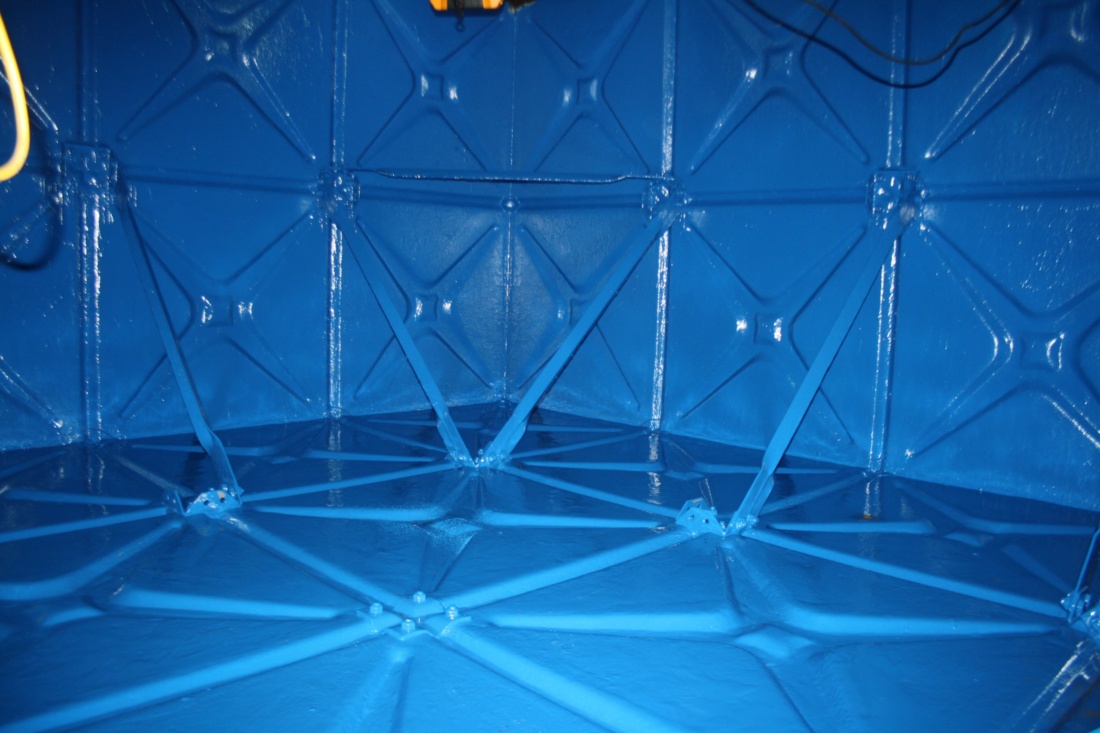

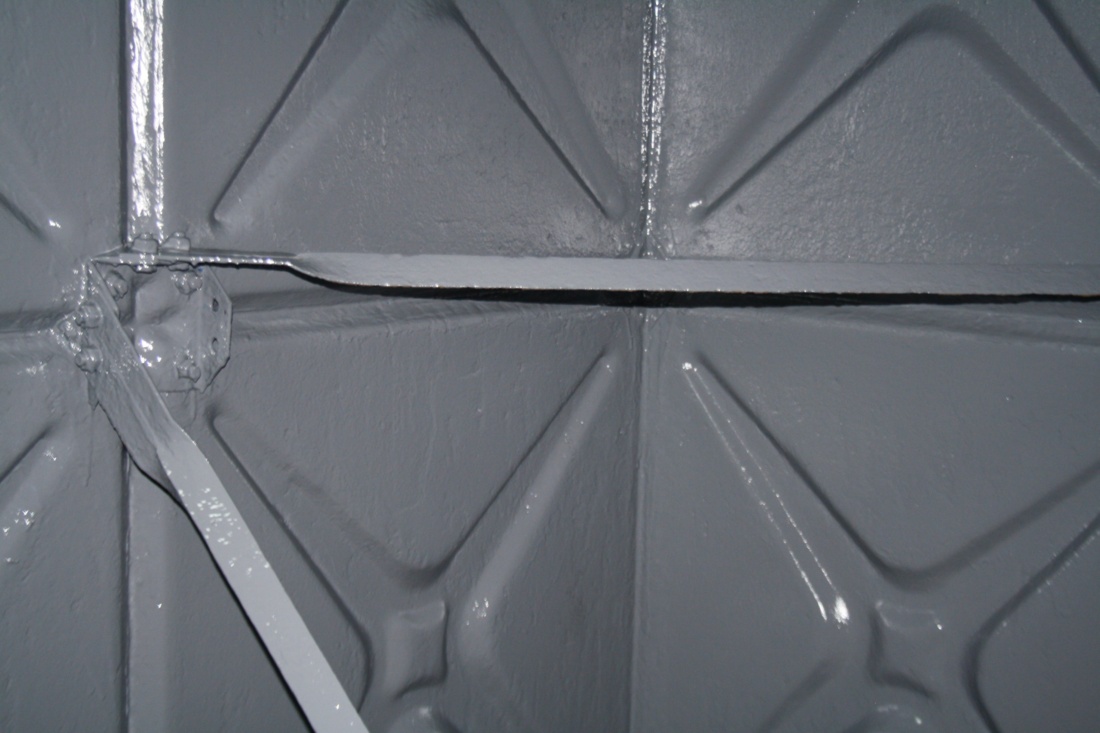

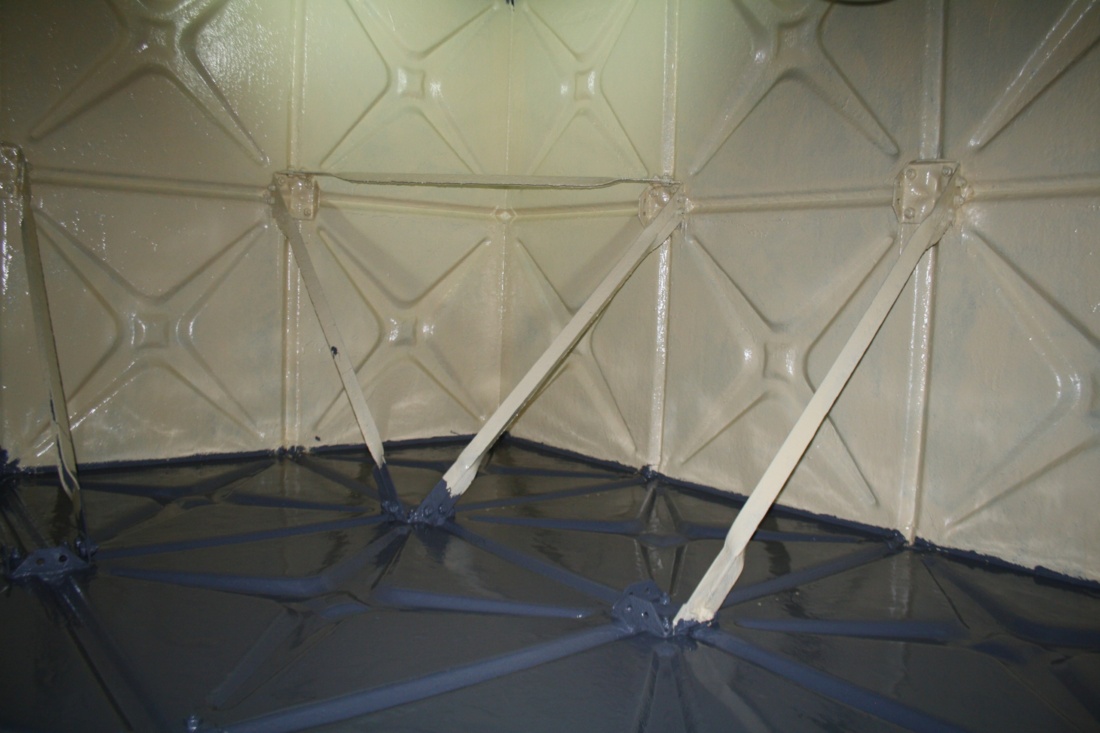

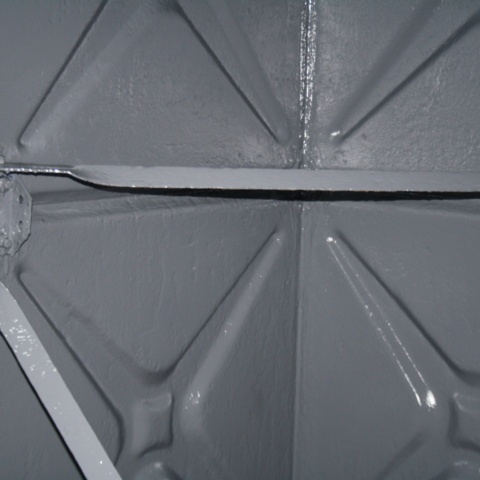

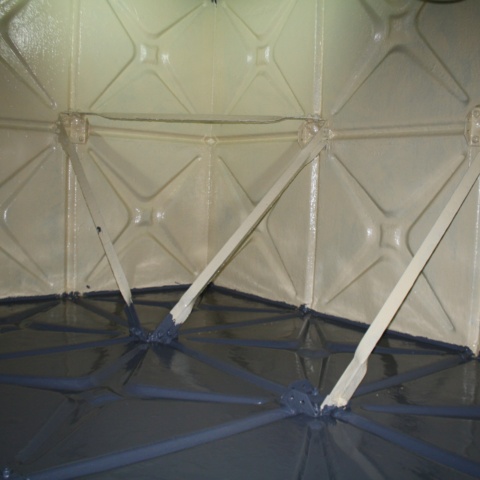

  • Apply a 3 coat WRAS approved lining system to the base and walls of the tank.
  • Wait for the lining system to cure, refill tank and return to service.
